- 产品简介
- 产品性能
- 应用范围
.jpg)
|
Model |
Voltage VAC
|
Freq. Hz
|
Current A
|
Power W
|
Speed rpm
|
Pressure mmAq
|
Air Flow CFM
|
Noise dB
|
|
|
Super Speed |
|
|
|
|
|
|
|
|
|
|
A9225-V1SBxP |
115 |
50 / 60 |
0.18 / 0.14 |
14.0 / 11.0 |
2550 / 3000 |
4.2 / 6.1 |
33 / 40 |
32 / 36 |
|
|
A9225-V2SBxP |
220 |
50 / 60 |
0.08 / 0.07 |
14.0 / 11.0 |
2550 / 3000 |
4.2 / 6.1 |
33 / 40 |
32 / 36 |
|
|
|
|
|
|
|
|
|
|
|
|
|
High Speed |
|
|
|
|
|
|
|
|
|
|
A9225-V1HBxP |
115 |
50 / 60 |
0.18 / 0.14 |
15.0 / 11.5 |
2550 / 2900 |
3.3 / 4.8 |
30 / 37 |
32 / 37 |
|
|
A9225-V2HBxP |
220 |
50 / 60 |
0.07 / 0.06 |
13.0 / 11.0 |
2550 / 2900 |
3.3 / 4.8 |
30 / 37 |
32 / 37 |
|
|
A9225-V1HSxP |
115 |
50 / 60 |
0.18 / 0.14 |
15.0 / 11.5 |
2550 / 2900 |
3.3 / 4.8 |
30 / 37 |
32 / 37 |
|
|
A9225-V2HSxP |
220 |
50 / 60 |
0.07 / 0.06 |
13.0 / 11.0 |
2550 / 2900 |
3.3 / 4.8 |
30 / 37 |
32 / 37 |
|
x : T (Terminals) , L (Lead Wire)
多款风机有售，全新原装正品，欢迎点击►恒瑞宏晟

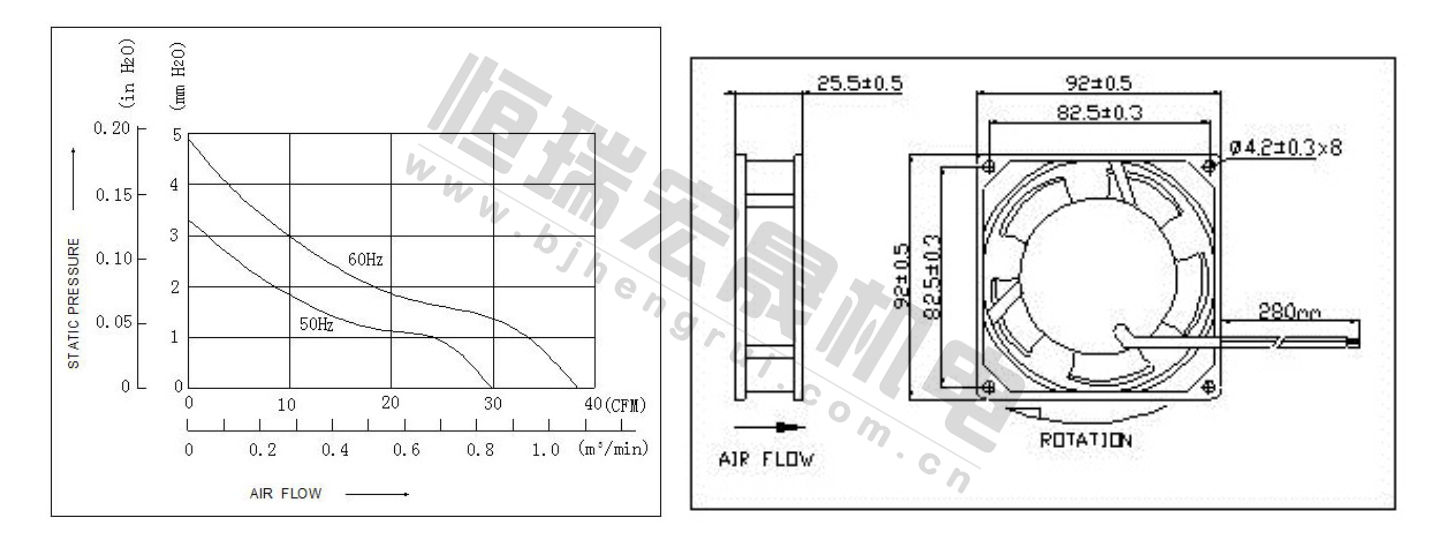

| SIZE | 92x92x25 |
| MATERIAL | Aluminum Housing, Plastic Impeller |
| BEARINGS | Maintenance-Free Ball Bearings |
| MOTOR TYPE | AC shaded-pole motor |
| CONNECTION | Terminals or Lead wire |
| DIELECTRIC STRENGTH | 1800 VAC for 1 Sec. |
| INSULATION RESISTANCE | 100 MΩ min.@500VDC |
| OPERATING TEMPERATURE | -30℃ to +75℃ (Ball Bearing) |
| -10℃ to +70℃ (Sleeve Bearing) | |
| TYPE OF PROTECTION | Insulation Class B |
| SAFETY | Impedance Protected |
| WEIGHT | |
| ROHS COMPLIANCE | Yes |
多款风机有售，全新原装正品，欢迎点击►恒瑞宏晟
通风，散热，制冷。
